DP360/DP363 High Line Pressure Variable Reluctance Pressure Sensor to 10k psid
- Wet-Wet capability
- Full scale range from ±8 psi to ±10,000 psi
- Static line pressures up to 10,000 psi with 3% FS Max. Line Pressure Effect
- Fast dynamic response
- Sensor diaphragms are field replaceable
- High natural frequency
The DP360/DP363 is Ideal for:
- Level Measurements
- Hydraulic Systems
- Vehicle Testing

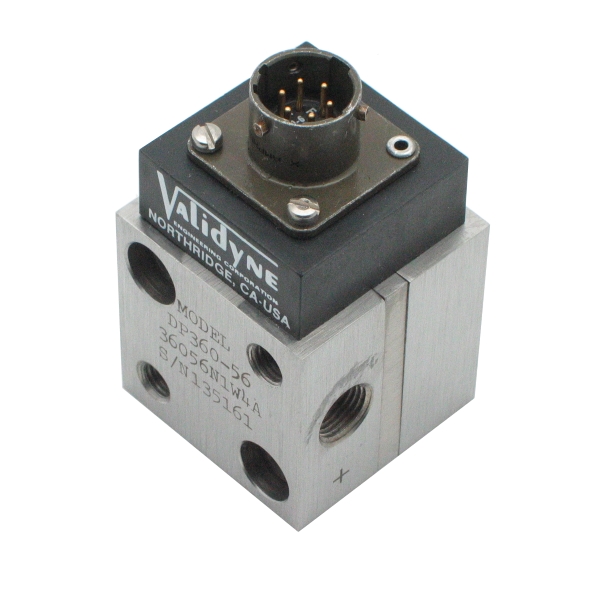

The Validyne Model DP360 and DP363 are designed to measure small differential pressures at extremely high static line pressures or extremely high gage or differential pressure.
The DP360 can be calibrated for a full scale as low as ±50 psid while withstanding high static line pressure. Low differential pressure may be measured at static pressures as high as 10,000 psig with a maximum 3% FS zero shift error.
The DP363 can be calibrated for a full scale as low as ±8 psid while withstanding high static line pressure. Low differential pressure may be measured at static pressures as high as 10,000 psig with a maximum 3% FS zero shift error.
Full scale pressure ranges up to 10,000 psi are available for the DP360 and field-replaceable sensing diaphragms allow the user to change ranges in the field.
Take-apart construction facilitates cleaning and all surface exposed to the pressure media are 410 stainless steel, Inconel, and diaphragm O-Ring material. Fast response to dynamic pressure volumetric displacement and high natural frequency of the DP360 and the DP363.
Several options are available, including Nickel or Gold plating and a wide variety of O-Ring material. See “Ordering Information” on the other side.
Now available in 316 SS for sea water and saline solutions and Inconel and Hastelloy for brine and other corrosive media.
