CD16 Single-Channel DC Powered Carrier Demodulator
- Rugged and Compact
- Operates from unregulated 9 to 55 Vdc
- Provides ±5 Vdc full scale output
- 4-20 mA output available
- Regulated against power variations
- Input/output isolation available
Category: Signal Conditioning
Tags: carrier demodulator, signal conditioning, voltage signal conditioning

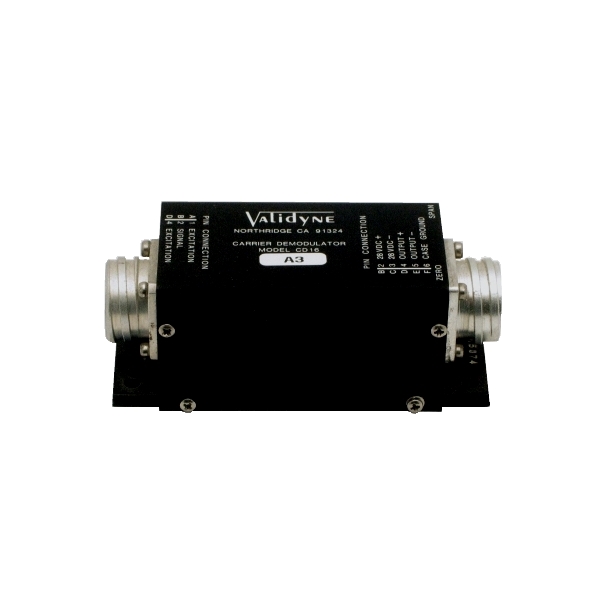

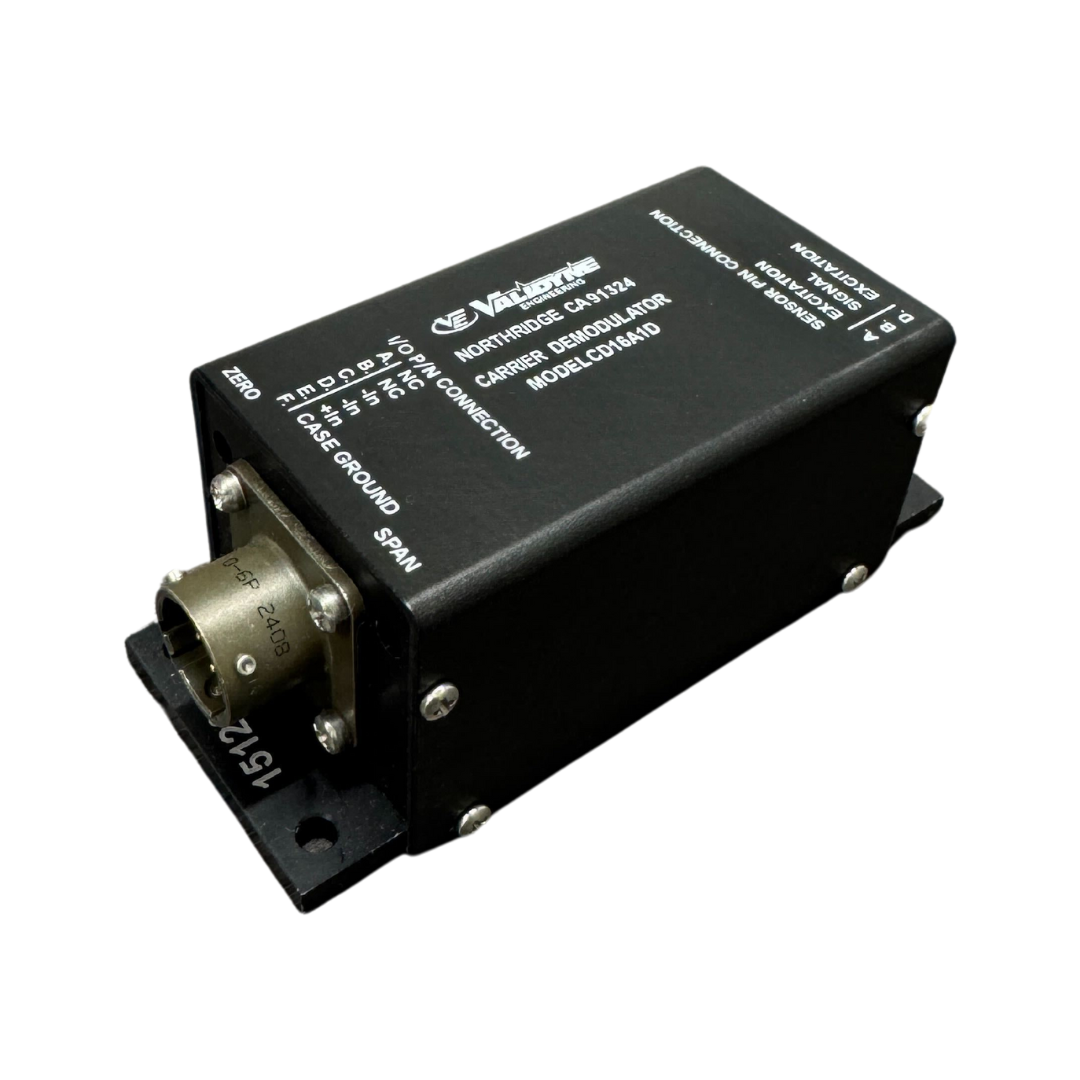

The CD16 Miniature Carrier Demodulator is designed to deliver a 0 to ±5 Vdc output from a variable reluctance transducer and operate from unregulated 9 to 55 Vdc power. A square wave excitation of 5 kHz is furnished to the transducer and the solid state integrated circuit amplifier and demodulator converts the transducer signal to an analog dc output. Zero and Span adjustments are made through access holes in the case.
The CD16 is available in 4-20 mA output versions and isolated ±5 Vdc output versions. The 4-20 mA versions is ideal for long wiring runs between the sensor & receiving instrument.
