From prototypes to production volumes, our-in house machine shop is built to support our own sensor manufacturing, now open for outside projects. Tap into decades of experience machining complex parts with tight tolerances and specialty materials, all through a single, streamlined platform.
Combining the rapid throughput of Haas Super-Speed technology with the proven reliability of Fadal 3320 workhorses.

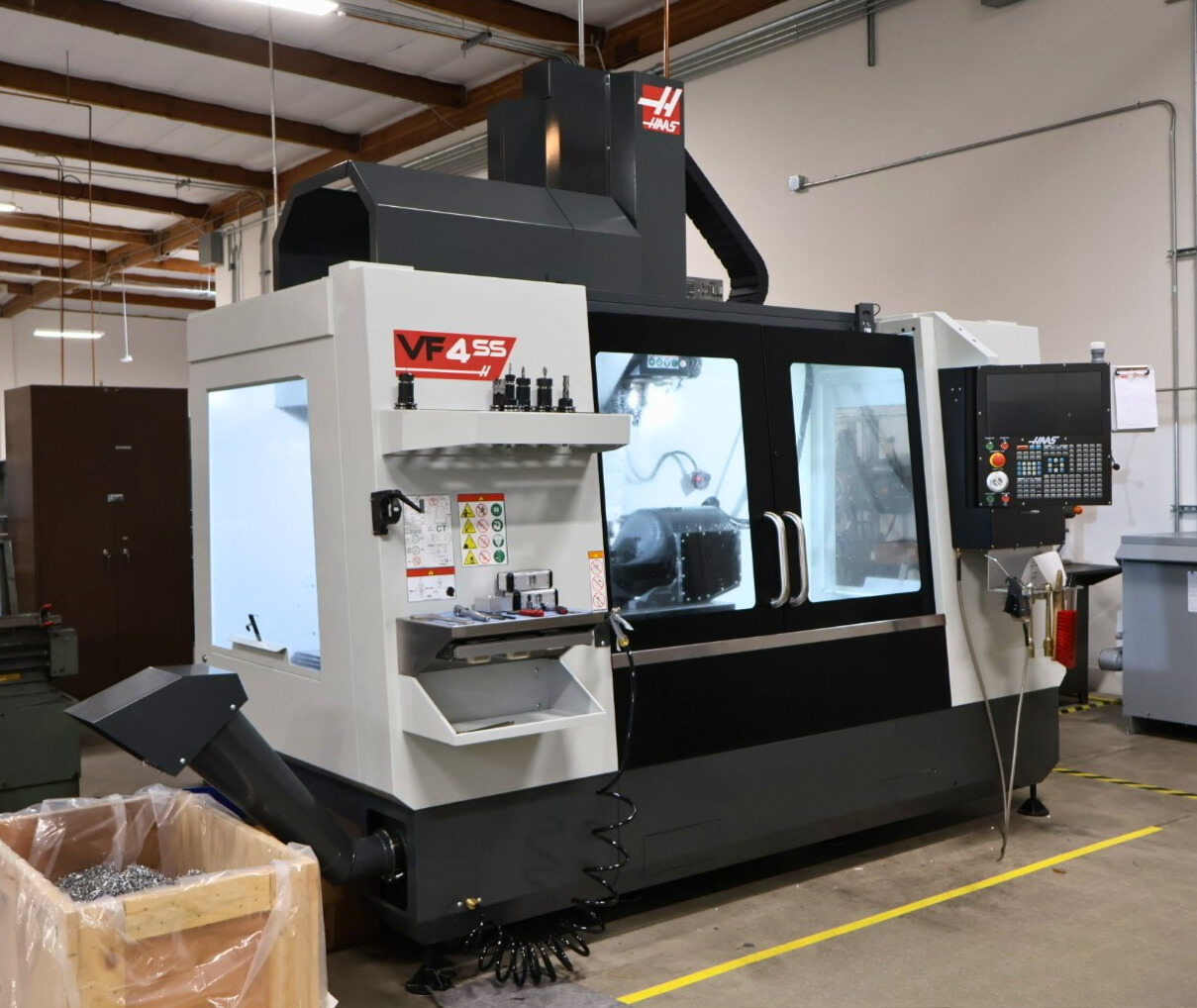

Haas VF-4SS (Super-Speed): Featuring a 12,000-RPM inline direct-drive spindle and high-speed machining software for superior 3D surfacing and complex geometries.
Extended Work Envelope: Capacity up to 40″ x 20″ x 25″ (X, Y, Z) for medium-to-large format components and multi-vise production setups.

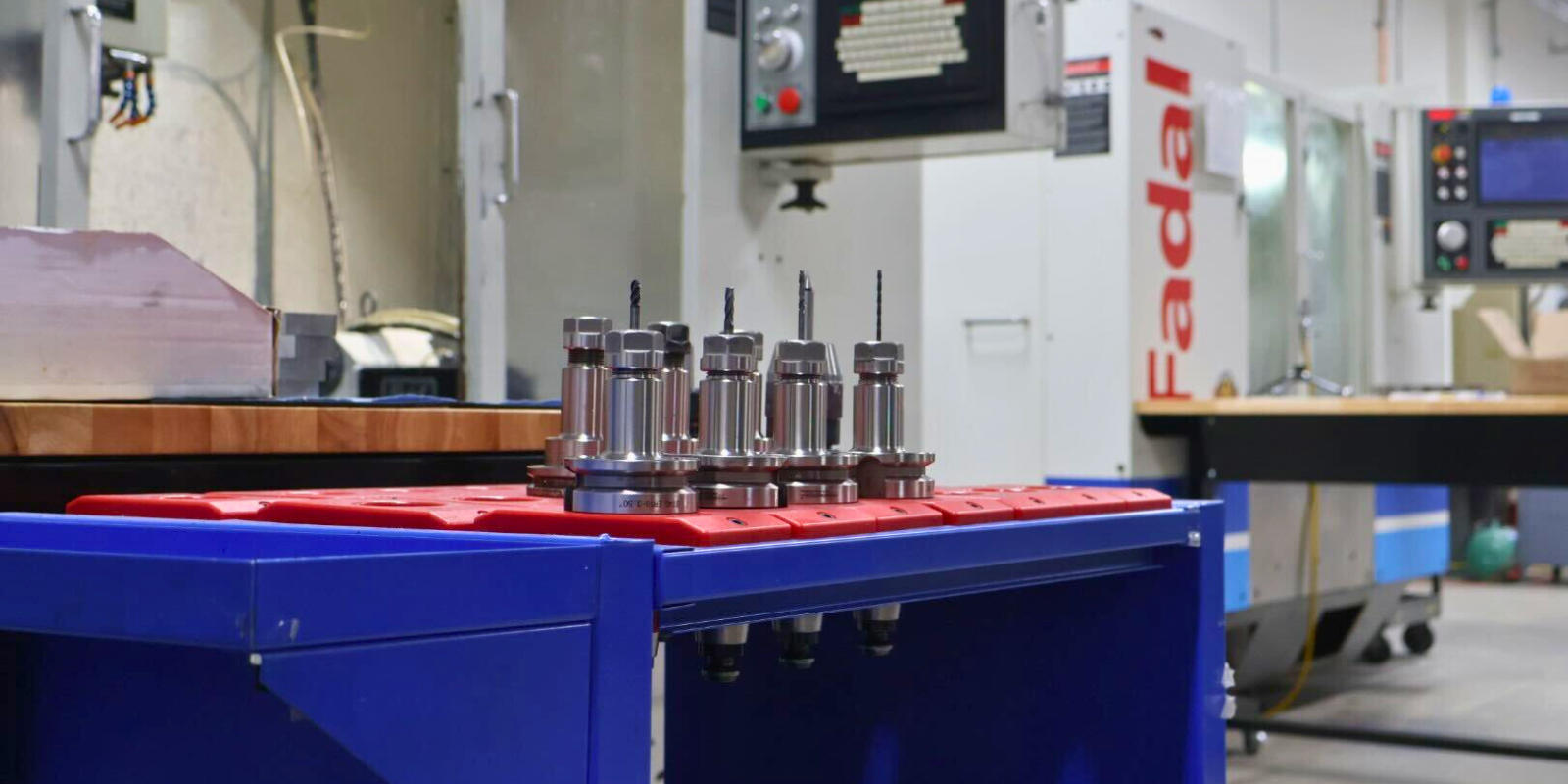

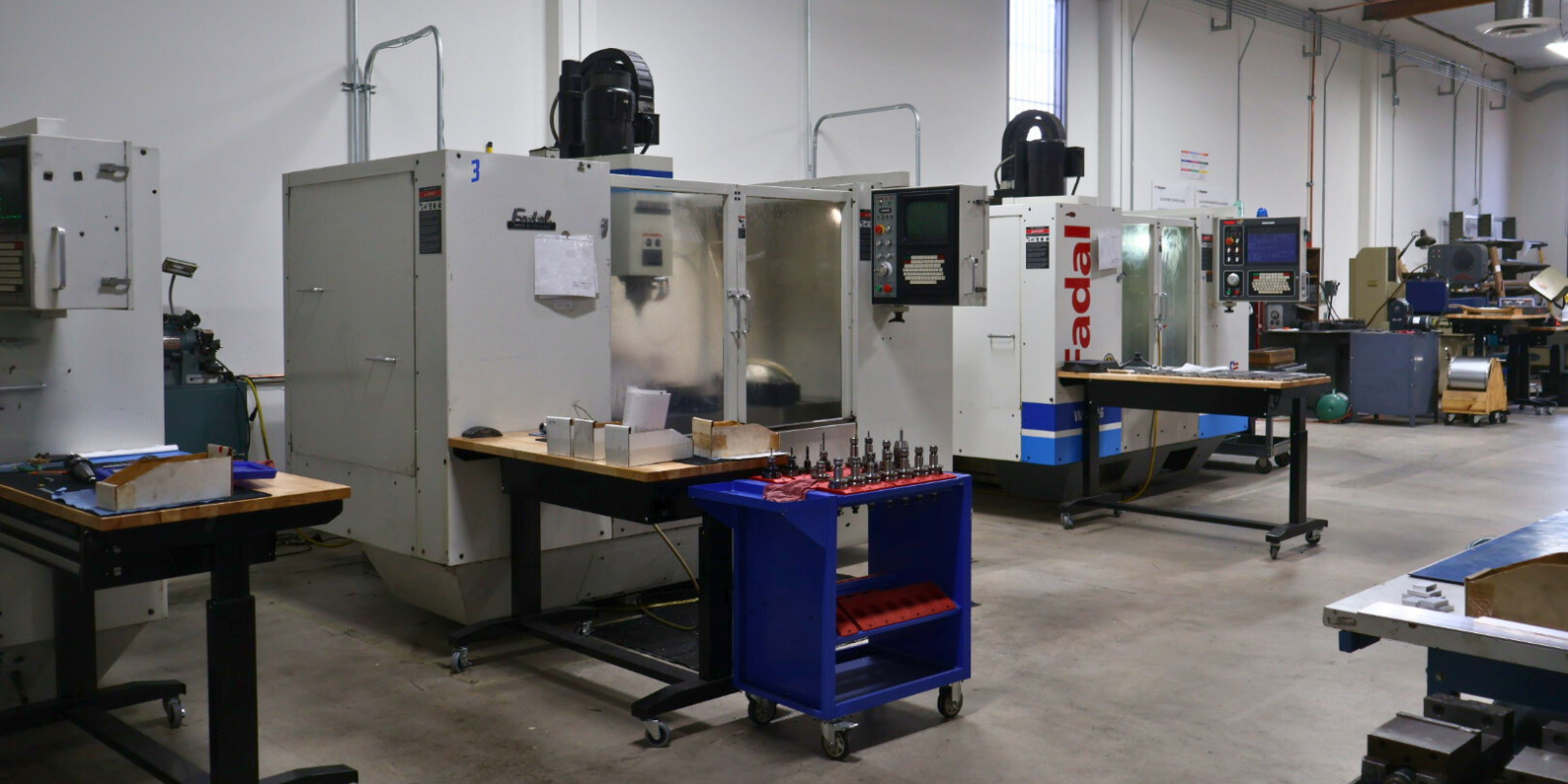

Production Scalability: 3 Fadal 3320 vertical machining centers providing dedicated capacity for high-volume runs and consistent mid-to-large part production.

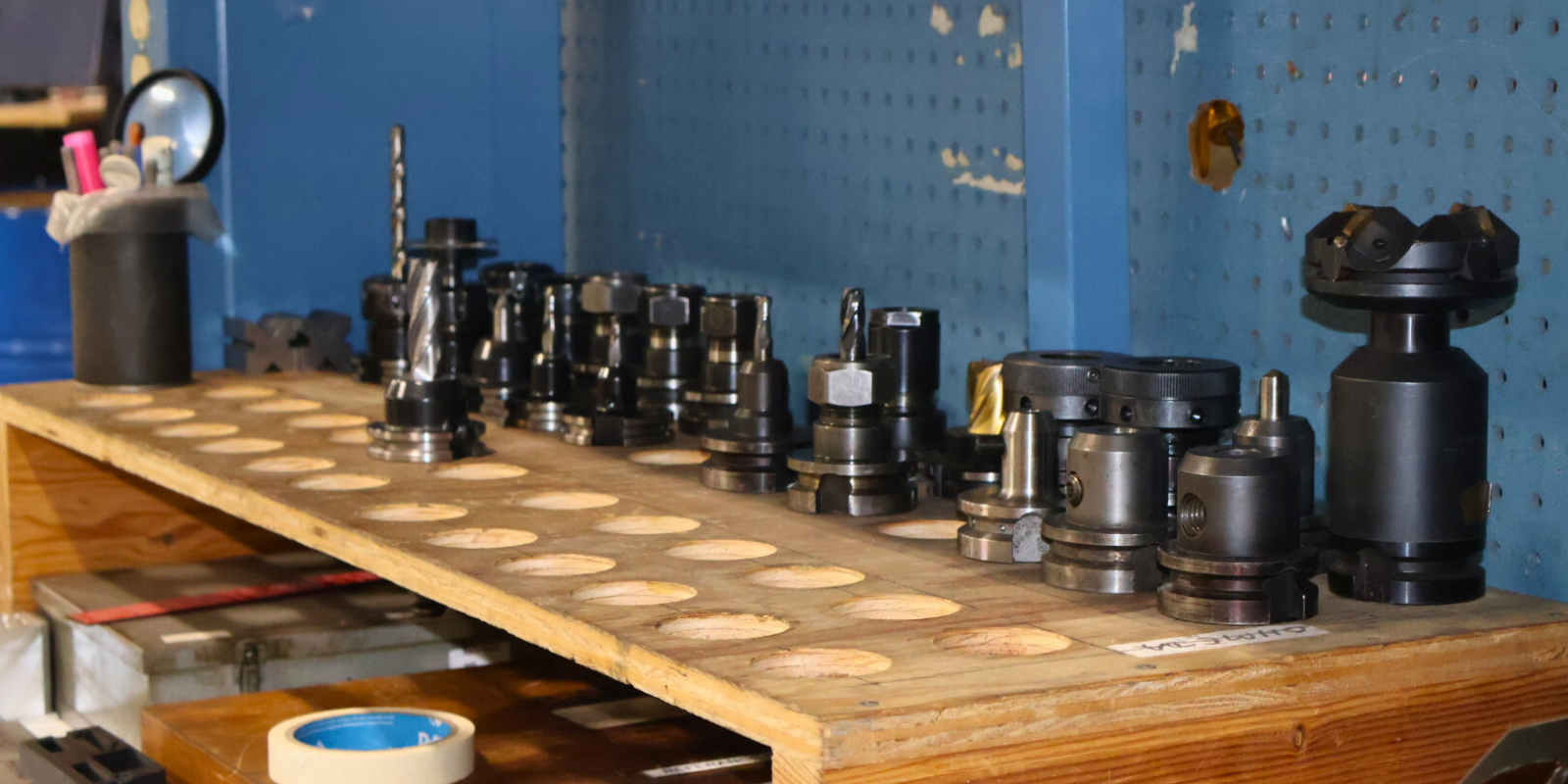

Precision Tooling: High-speed side-mount tool changers (24+1 stations) reducing non-cut time and maximizing spindle efficiency.
Material Versatility: Optimized feeds and speeds for everything from 6061-T6 Aluminum and Inconel to 316 Stainless Steel and Tool Steels.
Advanced “Done-in-One” manufacturing utilizing high-torque Mori Seiki, Nakamura-Tome, and Haas Y-Axis platforms.

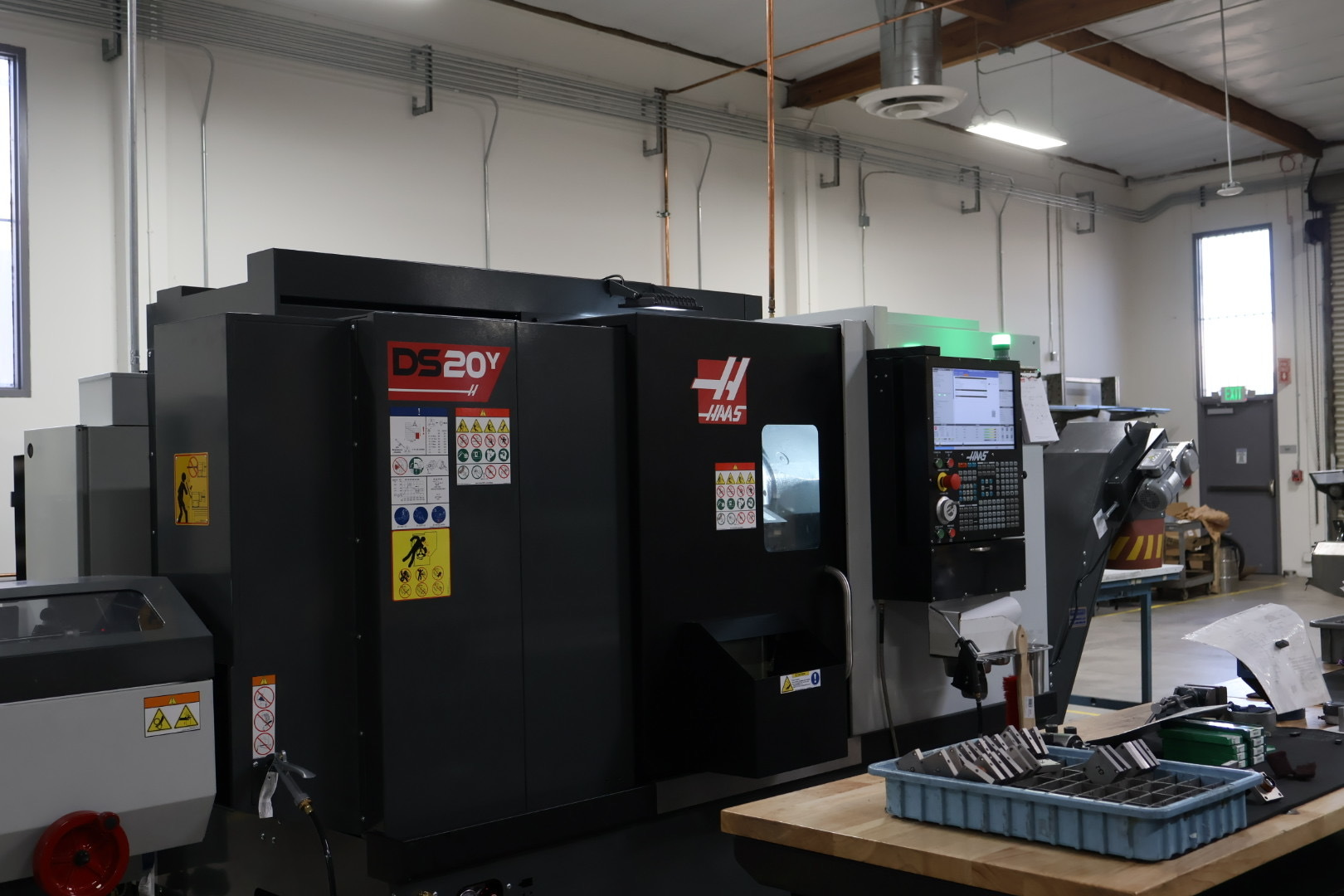

Haas DS-20Y (Dual-Spindle): True Y-axis travel (±2.00″) and Live Tooling allows for off-center milling, drilling, and tapping on a lathe.
Twin-Spindle Efficiency: Opposed-spindle design for automatic part hand-off, enabling the completion of both Op-10 and Op-20 in a single cycle.
Heavy-Duty Turning: Rigidity and high-torque performance from Mori Seiki and Nakamura-Tome centers for high-tolerance work in “tough” alloys.

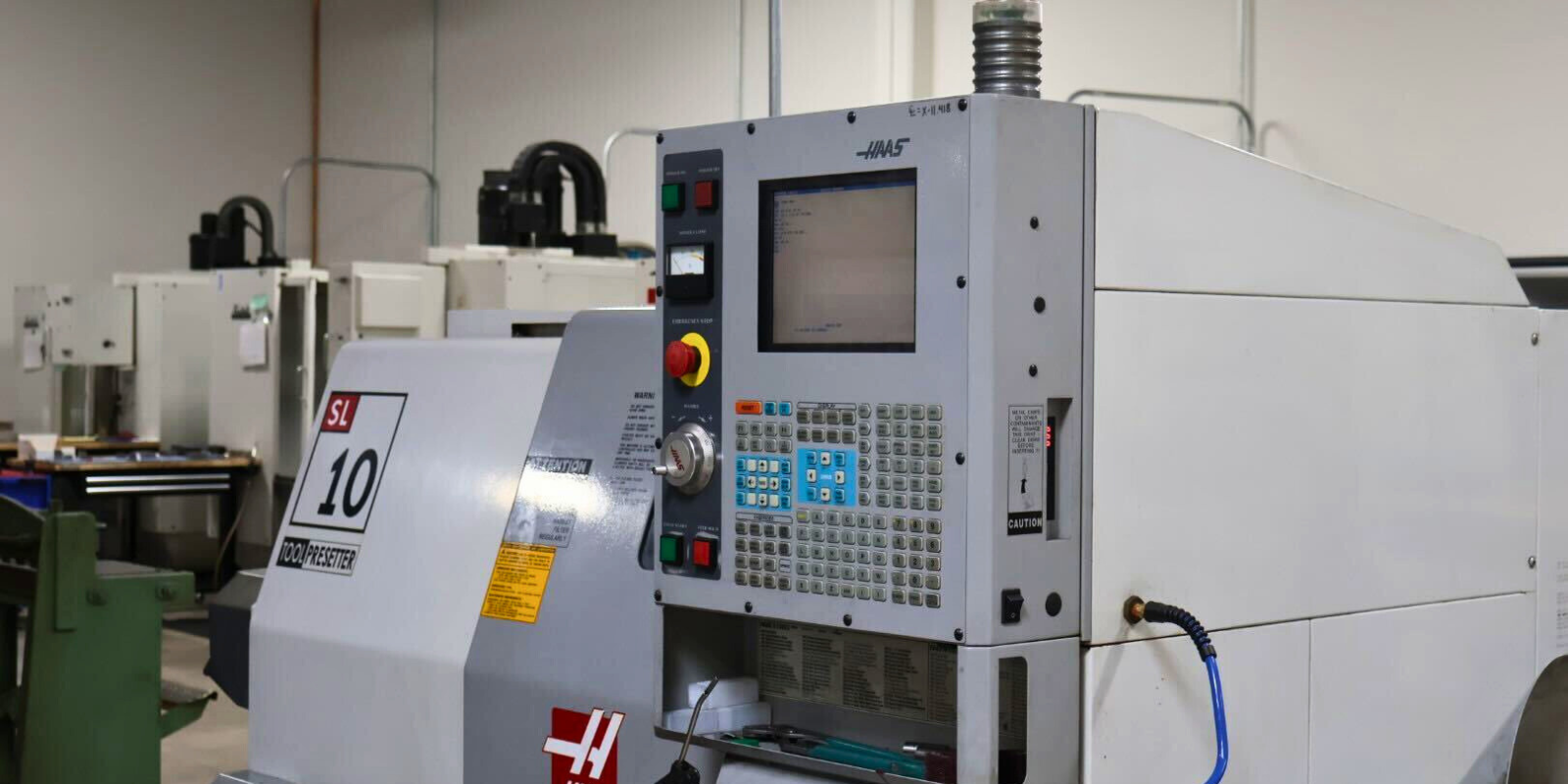

Small-Part Precision: Haas SL-10 dedicated to fast, high-accuracy small-diameter components (up to 1.625″ bar capacity).
Concentricity & Finish: Elimination of manual secondary operations ensures perfect alignment between front and back-side features.
Full-spectrum post-processing and precision finishing to deliver assembly-ready parts.
Precision Lapping: Achieving ultra-flat surface requirements and extreme dimensional thicknesses (± 0.0001″) beyond standard milling capabilities.
Automated Inspection: Keyence optical measurement systems integrated into the workflow for instant dimensional verification and 100% repeatability.
Industrial Texturing: Full in-house capability for Sandblasting (bead/media) and Graining (linear/brushed) to meet aesthetic and functional specs.
Edge Conditioning: High-standard deburring and cleaning to ensure burr-free parts ready for immediate clean-room or assembly-line use.
Integrated Logistics: One-stop-shop processing that reduces lead times and shipping costs by eliminating third-party finishing vendors.
Custom work is our specialty. Whether you need a single prototype, a small production run, or a hard-to-machine component, our team is equipped to deliver. We routinely work with challenging materials like Hastelloy, Inconel, stainless steel, and aluminum—handling each with precision and care.
With a full-service machine shop located on-site, we keep your project under one roof, from start to finish. Our facility features CNC lathes, mills, and grinders, along with conventional equipment for specialized tasks. In-house machining means faster lead times, strict quality control, and the flexibility to adapt quickly to design changes or urgent requirements.
Have an idea but need help bringing it to life? Our experienced engineering team is here to help. Using SolidWorks, we can assist with everything from initial concept and 3D modeling to refining your existing designs for better performance or manufacturability.
When precision matters, Validyne delivers. Our machinists work to tight tolerances with a focus on accuracy, repeatability, and consistency. Every part is inspected using our Keyence 3D Profilometer and verified against your specifications. Our robust quality management system, backed by ISO9001:2015 and AS9100D:2016 certifications, ensures that your components are built right the first time—every time.
