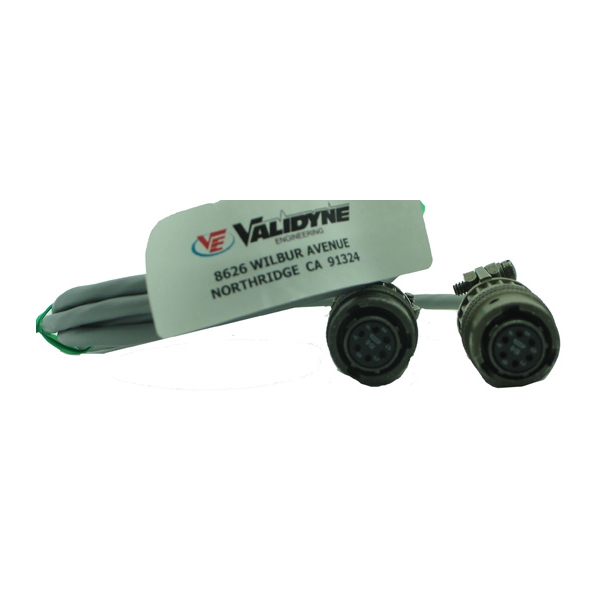

12455 Extender Cable
Email to a friendConnects to model DP103 and DP45 transducer cables to extend their length. PT06A-10-6S connector mounted on one end of the cable allows connection to standard carrier demodulators. Comes in 5, 10, 15, 25 and 50 foot lengths.
