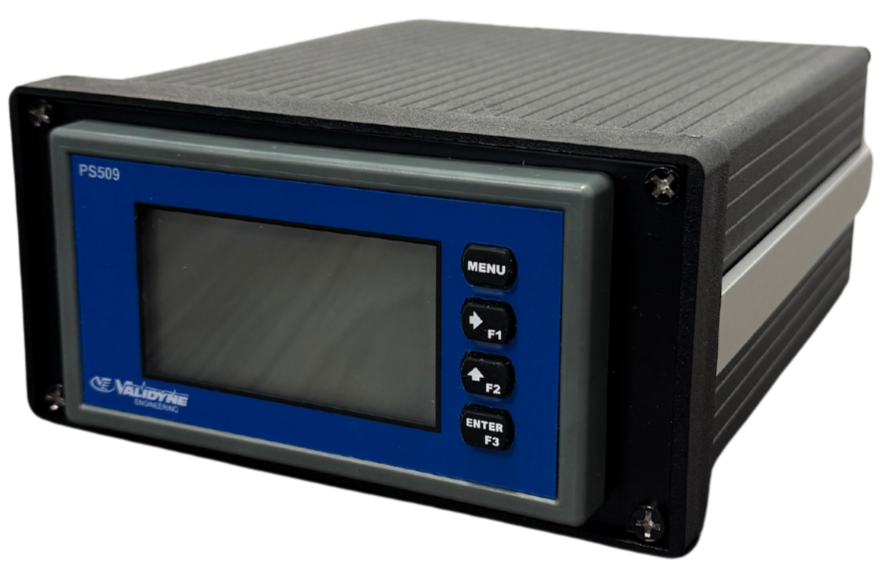

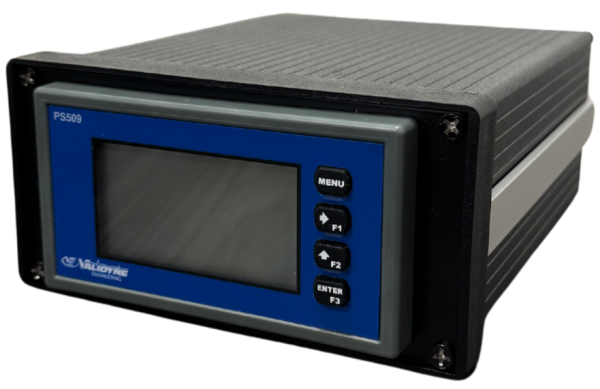

PS509 Digital Pressure Indicator

  • Lightweight construction, 3/8 DIN enclosure
  • Absolute gage and differential ranges, 0.08 to 3200
    psi FS
  • All surfaces in contact with pressure media are
    stainless steel – both ports in differential units
  • Adjustable engineering units / Decimal point
  • Digital output via USB

Category: Tags: , , ,

The PS509 is Ideal for:

  • Test panel and test cell applications
  • Pumps and hydraulic systems
  • Pneumatic systems
  • Engine and vehicle test stands
  • Gas distribution
  • Product / process control testing
  • Fuel pressure
  • Emission testing

The PS509 self-contained digital indicator and pressure sensor is ideally suited for test panels in industrial and laboratory applications where accurate low-pressure readings are required.

Digital Indicator

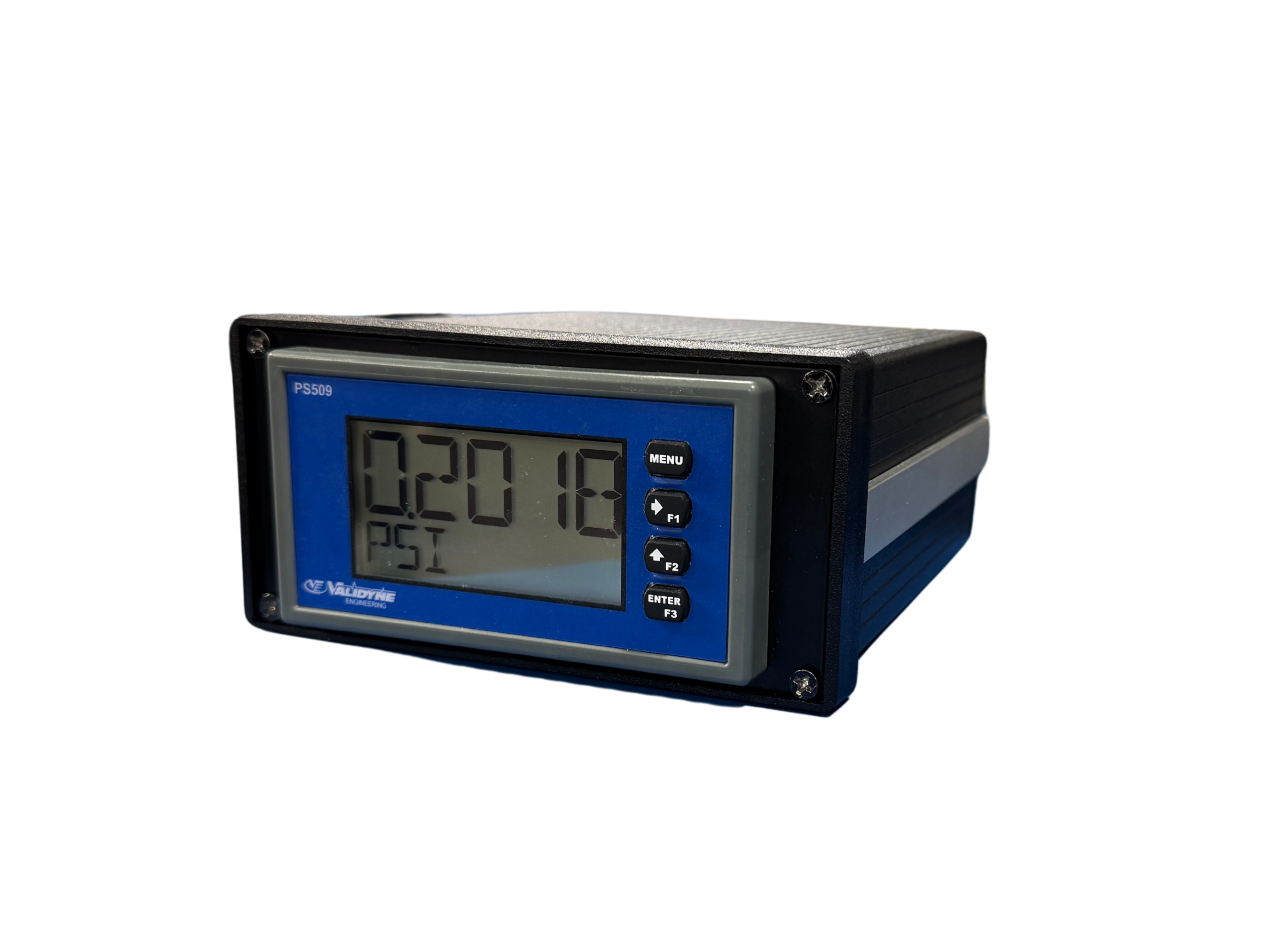

The panel-mount digital indicator with large 5 digit top line and a 8 digit bottom line display, provides a clear readout in multiple engineering units which can be selected from the front panel. Reading and resetting max and min values, high and low alarms and a stopwatch mode are all available via the front buttons. The engineering units and decimal points can be changed from the front panel buttons as well.

Transducer
The transducer is available in absolute, gage and differential versions. It features corrosion resistant materials at point of contact with the pressure media. With an easy-to-replace sensing diaphragm, gage and differential transducers can be reconfigured to measure 23 pressure ranges from 0.08 psi FS to 3200 psi FS. In addition, the unit provides a 5 Vdc analog output suitable for recording, remote display or control purposes.

Downloads

Instruction Manual
